In-situ diagnostics and model-based control of inline magnetron sputtering processes for large-area coating.
Magnetron sputtering
For the economical deposition of functional coatings from semiconductor technology through to medical products, magnetron sputtering delivers coatings of the highest quality
The Fraunhofer IST brings together unique expertise in the industrial use of magnetron sputtering. From applications for friction reduction or protection against corrosion and wear, through electrical and optical functions, and on to medical technology, the different variants of magnetron sputtering are utilized. Diverse coating sources, as well as process monitoring and active control, are applied and further developed at the Fraunhofer IST.
Application-oriented development on industrial coating facilities
For development purposes, industrial coating facilities in batch and inline type with different source geometries (planar and cylindrical cathodes) for metallic and reactive deposition are available.
EOSS® coating platforms for the production of optical coatings of the highest quality and with high throughput

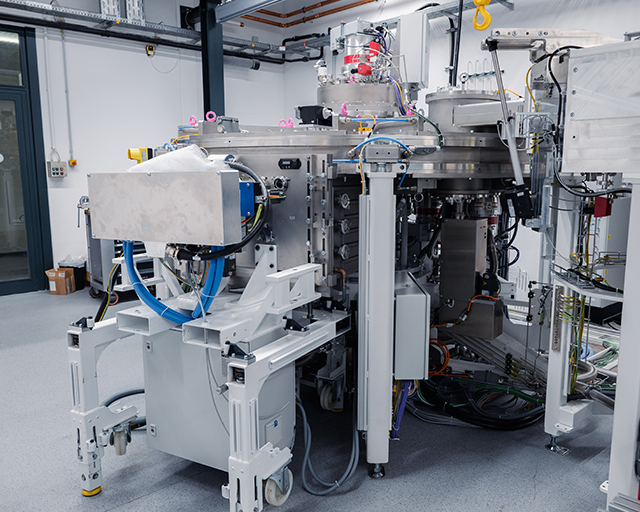

Second-generation EOSS® coating system for simultaneous double-sided deposition of interference filters
First-generation EOSS® coating system for single-sided coating of precision optics.
With the EOSS® (Enhanced Optical Sputtering System) sputtering systems, the Fraunhofer IST has ultra-modern equipment at its disposal for the production of precise optical interference filter systems. The layers are thereby applied to the substrate in up to three chambers by means of magnetron sputtering. As source materials, cylindrical tubes are utilized which, in contrast to their planar counterparts, exhibit a significantly more stable distribution function. For the further reduction of particle contamination, the entire system (see adjacent figure, lower section) was designed as a “sputter-up” concept. In such cases, coating takes place from the bottom upwards so that heavier particles cannot condense on the substrates. An additional station for plasma treatment and a powerful heating system round off the systems.
With the second generation of the system, coating can now also be carried out simultaneously from above. This allows a reduced process time for the production of optical filters with reverse-side coating. In addition, distortions caused by layer stress can be compensated for during filter deposition and even exceptionally thin substrates can be functionalized in this way.
Specifications / Technical data
- Magazine system for substrate carriers
- 10 or 12 substrate carriers with a usable diameter of 200 mm and a usable thickness of 50 or 70 mm
- Two or three sputtering chambers with one material respectively
- Sputtering power up to 20 kW per meter and target
- Deposition rates of up to 1 nm/s
- Spectral transmission monitoring from 250 - 1650 nm
- Process automation using MOCCA+®
- RF plasma source
- Substrate heating up to 300 °C substrate temperature
- Full loading of the system from atmosphere to 1x10-6 mbar airlock pressure, including airlocks, in less than 20 minutes
- Base pressure approx. 1x10-7 mbar, achievable within 24 hours
Inline coating facility for large-area coating
Inline magnetron sputtering system for large-area coating.
The experts at the Fraunhofer IST utilize the A700V inline-sputter coating facility for the research and development of coatings and complex coating systems on an industrial scale. This ranges from material and process development of single layers through to systems of up to 10 different materials, e.g. for transparent conductive oxides (TCO), low-e layer systems, electrochromics, solar protection, fuel cells, interference optics on a large area or astronomy mirrors.
Specifications / Technical data
- Inline sputtering facility with five coating modules and two lock chambers
- One lock chamber with clean-room access, incl. professional substrate cleaning system
- Planar and cylindrical sputtering cathodes as well as serial co-sputtering
- Sputtering processes: DC, RF, RF+DC, MF and HIPIM, reactive or from ceramic target
- Available gases: Ar, O2, N2, H2. Others upon request.
- Lambda probes or optical emission spectroscopy (OED) for process control
- Maximum substrate temperature 400 °C
- Substrate dimensions up to 60 x 100 cm2
Serial co-sputtering – Megatron®
The shown coating module enables IST researchers to produce previously unattainable combinations of materials.
The Megatron® coating module developed at the Fraunhofer IST allows the rapid and variable realization of previously unattainable combinations of materials. Behind each of the two cylindrical tube targets, a further planar target is arranged. In the secondary sputtering process, atoms are detached from the planar target and “implanted” into the tube target. Titanium oxide, for example, can be doped with niobium and deposited. For certain material combinations, this results in an increased sputtering rate of up to 100 percent compared to the conventional process. The new module is ready for series production and can be retrofitted.
Specifications / Technical data
- Combination of two primary tube targets and two secondary planar targets
- Tube target length: 600 mm
- Cost-efficient process as a result of increased deposition rate
- Deposition of previously non-producible material combinations
- Rapid alteration of the composition of the primary tube target through variation of the performance of the secondary target
- Simple generation of gradient coatings
- Reduced development times
Sketch of the Megatron® serial co-sputtering module developed at the Fraunhofer IST.
